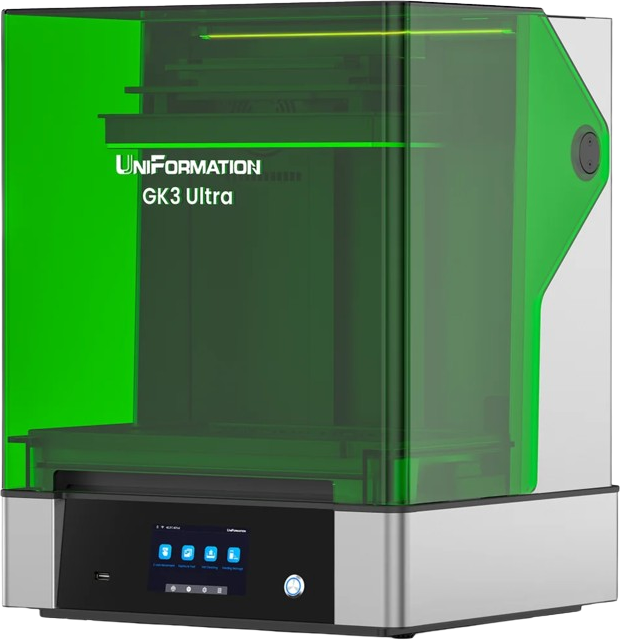

UniFormation GK3 Ultra

Resin printer with 16K resolution

€ 1.229,99

(Price shown includes 23% VAT. - Excludes delivery costs)

Content: 1 pc

Only 8 items in stock

Delivery by Thursday, 16 January if you order by Friday at 09:30.

Ireland: Free standard delivery
More information regarding shipping & delivery

Features & Advantages

  • 16K mono display
  • Auto Resin Feeding System
  • Integrated heater
  • Resin Drip Hanger

Item no.: UNI-9010707007586, Content: 1 pc, EAN: 9010707007586

Product information & technical details

  • Item no.: UNI-9010707007586
  • Manufacturer No.: 9010707007586
  • Manufacturer: UniFormation
  • Content: 1 pc
  • Product type: 3D Printers
  • Light source: LCD
  • Assembly: Fully assembled
  • Printing Technology: UV LCD
  • Printer Display: Touch Display
  • Interfaces: USB - Connection, WIFI - WLAN, LAN
  • Build volume: 300 x 160 x 300 mm
Description

The UniFormation GK3 Ultra is a very exciting new arrival in the world of resin 3D printers. At the heart of the printer is its 16K display which allows the smallest details and structures to be depicted with incredible precision. In addition to the high resolution, GK3 Ultra offers a generous build volume which allows larger models to be printed in a single pass.

13.5-inch LCD with 16K resolution

The robust UniFormation printer with a build volume of 300 x 300 x 160 mm uses a 13.5-inch LCD display with 16K resolution (15120 x 6230 px) and an XY resolution of 20 x 26 µm, resulting in incredibly detailed and precise prints.

Stable construction

The GK3 Ultra resin printer has an incredibly stable construction and industrial-grade sturdiness. Dual linear rails minimise wobbling during the printing process, while ball screws ensure more precise control.

Auto Resin Feeding System

The Automatic Resin Feeding System makes handling the resin easier.

Functions:

  • Resin refill during printing,
  • Automatic detection of resin residues

Smart heating system with automatic function

The GK3 Ultra is equipped with an automatic heating function. When switched on, it heats the resin to 25°C in just 15 minutes. If the function is not switched on, the resin printer starts printing immediately without heating the resin first.

Hinged cover

Like the GKtwo, the GK3 Ultra has a space-saving vertical hinged cover. This takes up little space and makes it easier to access the build platform.

Quick-release design for easy maintenance

The components of the GK3 Ultra can be released without screws. With the quick-release design, the build plate or resin tank, for example, can be pulled out and then removed without any tools.

Other features:

  • Quick-release build platform for fast maintenance,
  • Resin drip hanger,
  • Integrated LED light,
  • Small channel for resin drainage

Included in the delivery:

  • 1 x UniFormation GK3 Ultra
  • 1 x building board
  • 1 x resin container
  • 1 x power cable
  • 1 x USB stick
  • 1 x screen protector
  • 1 x nFEP film
  • 1 x metal scraper
  • 1 x pair of pliers
  • 1 x tool
  • 1 x USB WiFi
  • 1 x funnel
  • 1 x user manual

Technical specifications:

Device dimensions 455 x 400 x 575 mm
Weight 30 kg
Build volume 300 x 160 x 300 mm
Device display 5 inch capacitive touch
Printer technology MSLA
Display 16K 13.5 inch (302.4 x 161.98 mm)
XY resolution 15120 x 6230 pixels
Exposure time 2-3 sec per layer
Resin box capacity 1.2 kg
Resin box capacity 1100 ml
Interfaces USB stick, WiFi file sharing, Ethernet
Slicer UniFormation Slicer, Chitubox, Lychee
Power consumption during printing 200 W
