Micro-Swiss NG REVO Direct Drive Extruder for Creality CR-10 / Ender 3 Series

This NG Revo Direct Drive Extruder was designed specifically for Creality's Ender 3 Series and CR-10. One goal was pursued in the process: A harmonious merging of RapidChange Revo technology with the Micro Swiss NG™ extruder line.

The kit includes everything you need to upgrade your 3D printer to a lightweight Direct Drive system with an E3D Revo hot end.

Tip: The installation takes no more than half an hour, and you don't have to make any changes to the firmware in the process!

Main features of the NG Revo Direct Drive Extruder:

• Lightweight
• 3:1 gear ratio
• Compatible with Creality Ender 3 series and CR-10
• Precision machined hardened steel dual gear drive

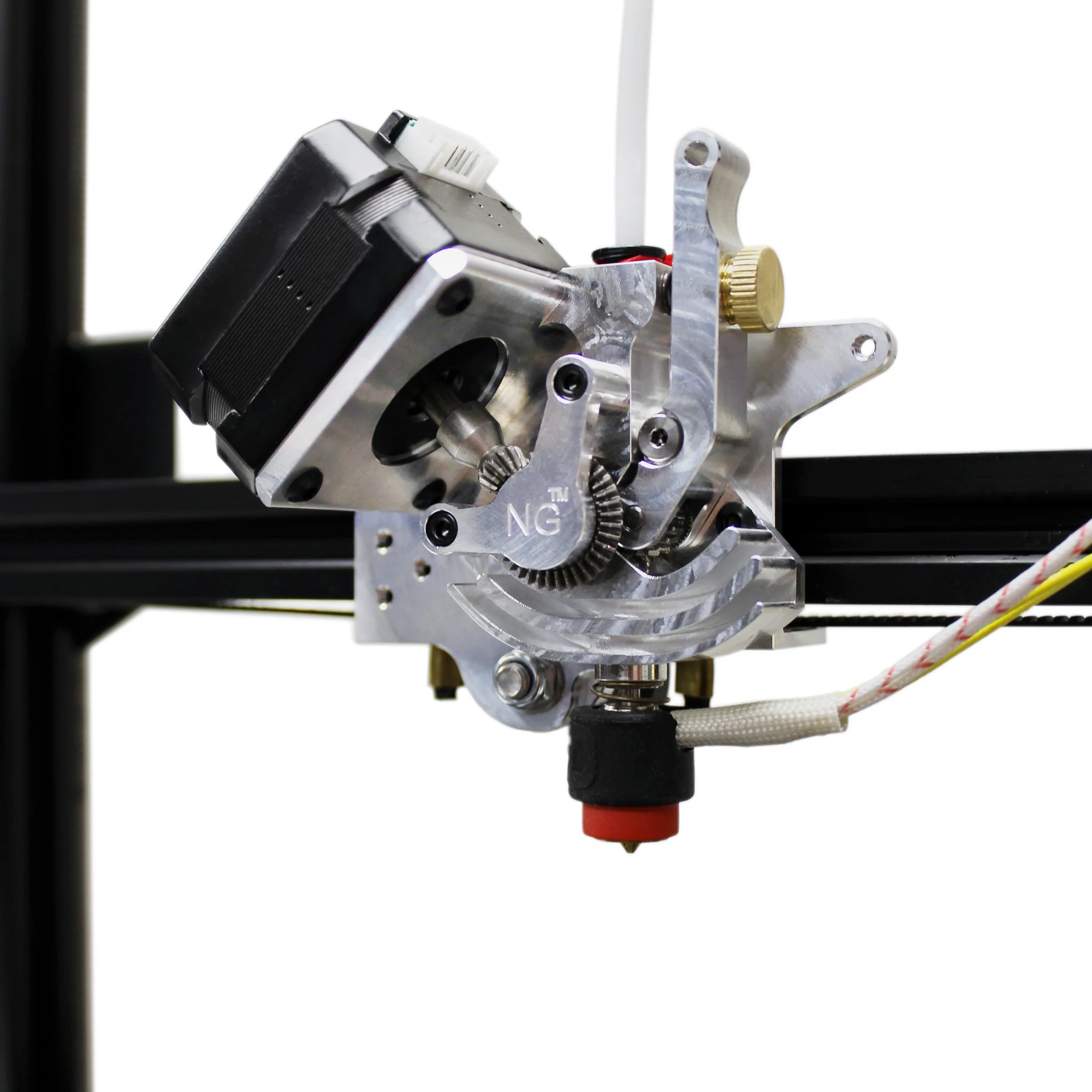

• Bevel Gear system for a low overhang extruder mount
• Contains an integrated E3D Revo hotend
• Quality made in the USA

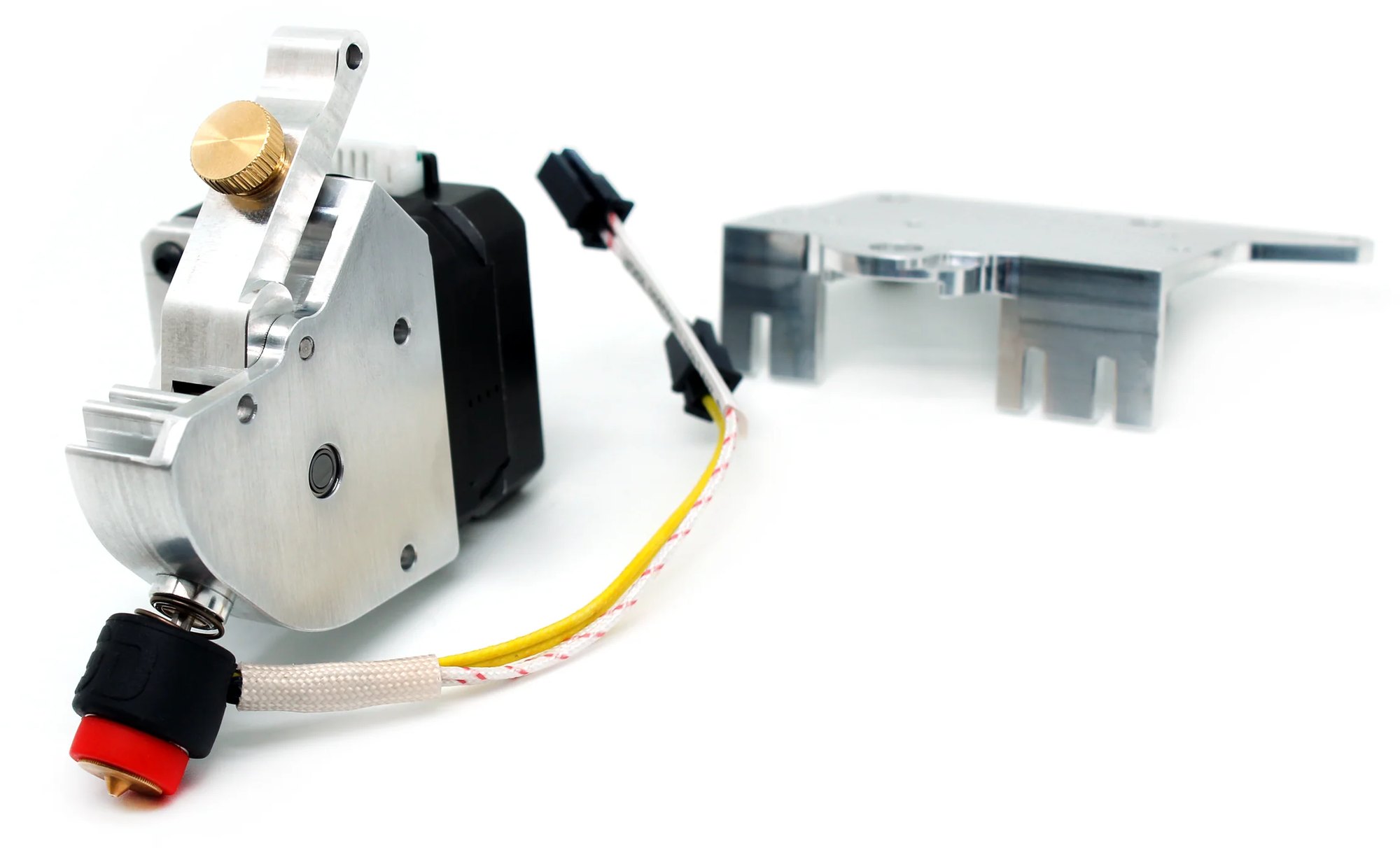

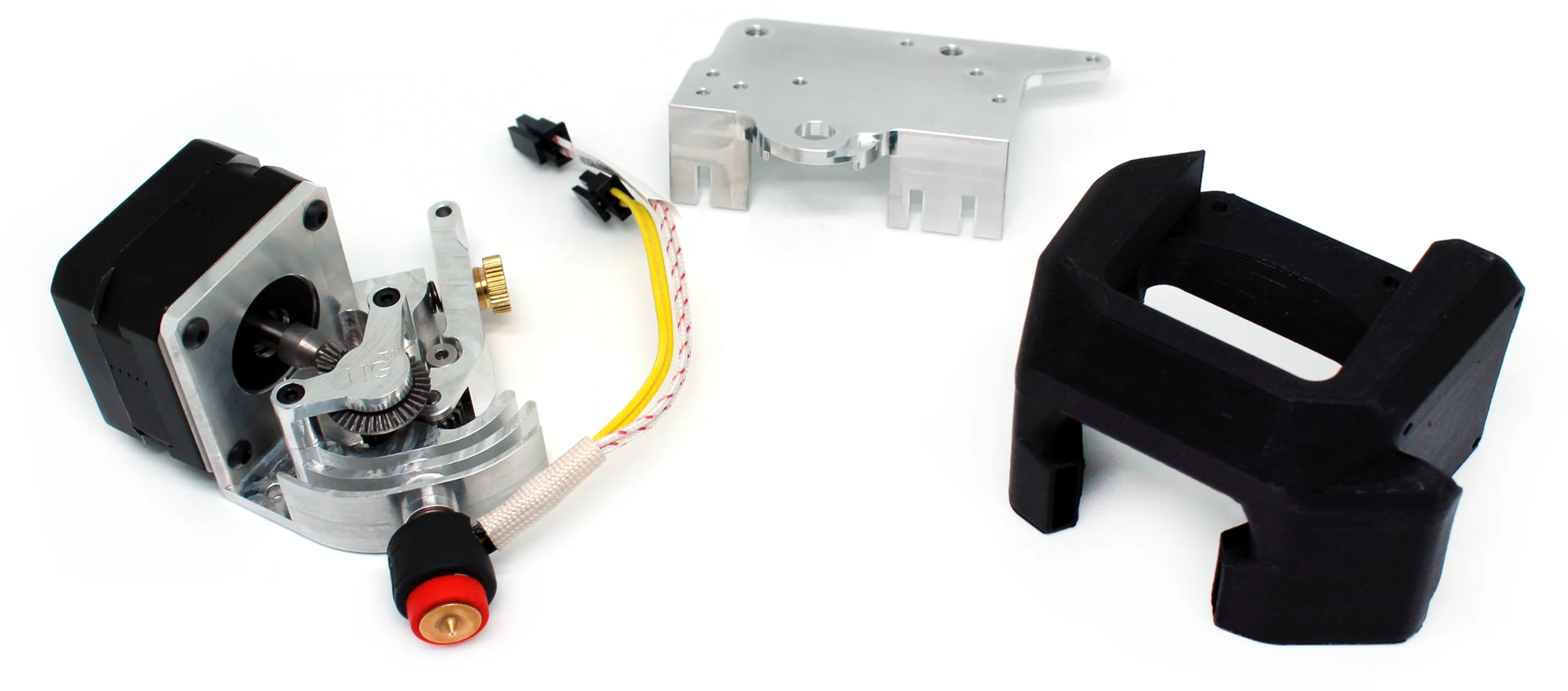

Included:

• 1 x master extruder assembly
• 1x matching plate
• 1 x LDO stepper motor

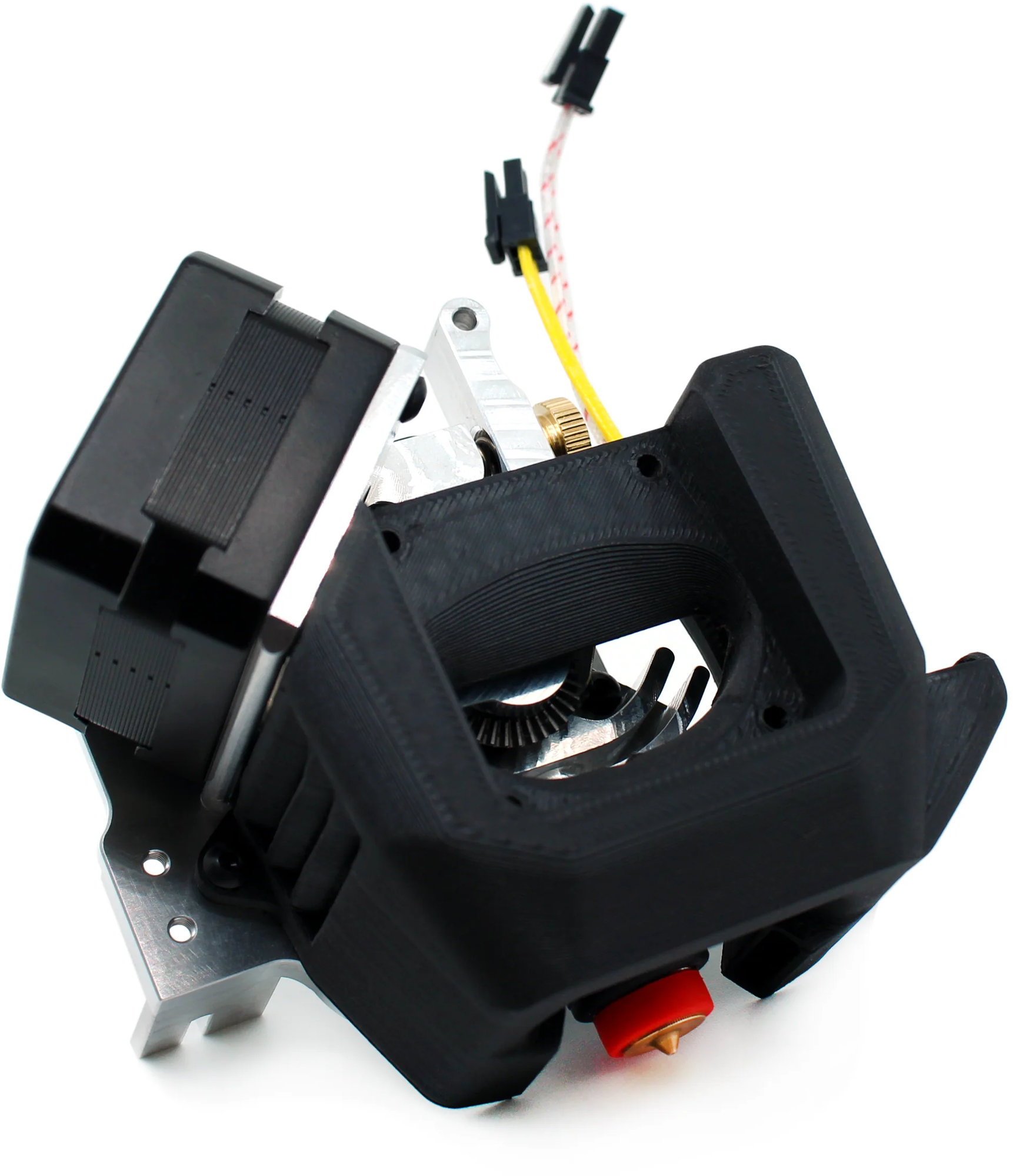

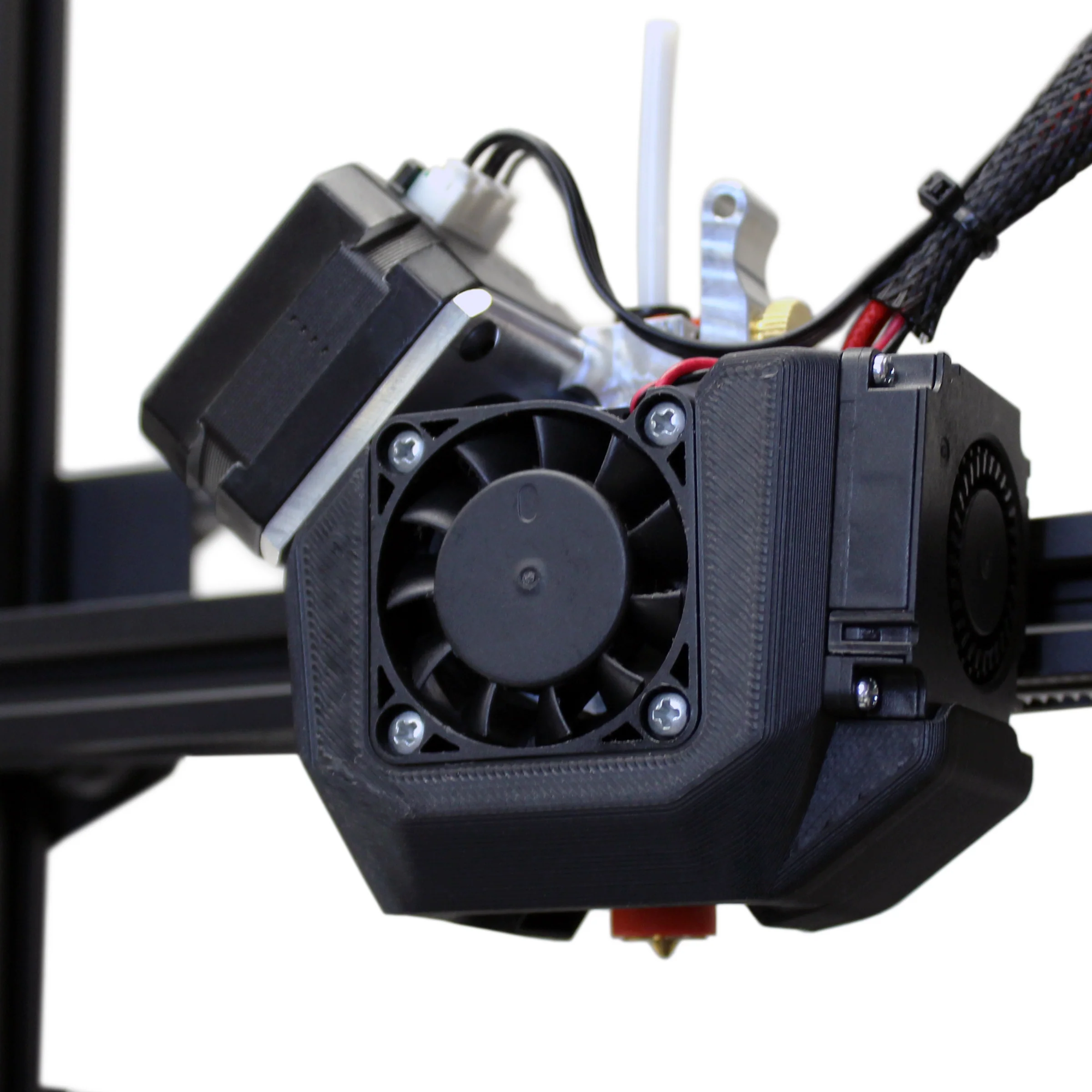

• 1 x Fan Shroud
• 1 x Extension Cable
• 1 x Revo Hotend Assembly (with: 1x Revo CR-HeaterCore 24V, 1x Revo HeaterCore spring, 1 x 0.40 mm Revo brass nozzle)

Note: Please note that the contents of delivery are designed for devices with an operating voltage of 24 V. The 12 V variant of the E3D Revo HeaterCore is required for 12 V devices.

Hardware:

• 1 x Eccentric nut
• 1 x M5 x .8 x 30 mm cap screw
• 1 x 5mm ID 10mm OD washer
• 1 x M5 x .8 nylon lock nut
• 2 x M5 x .8 x 20 mm nylon cap screws
• 4 x M2.2 x 8 mm self-tapping screw for plastic
• 4 x M3 x 12 mm self-tapping screw for plastic
• 5 x Cable ties
• 4 x Butt connector
