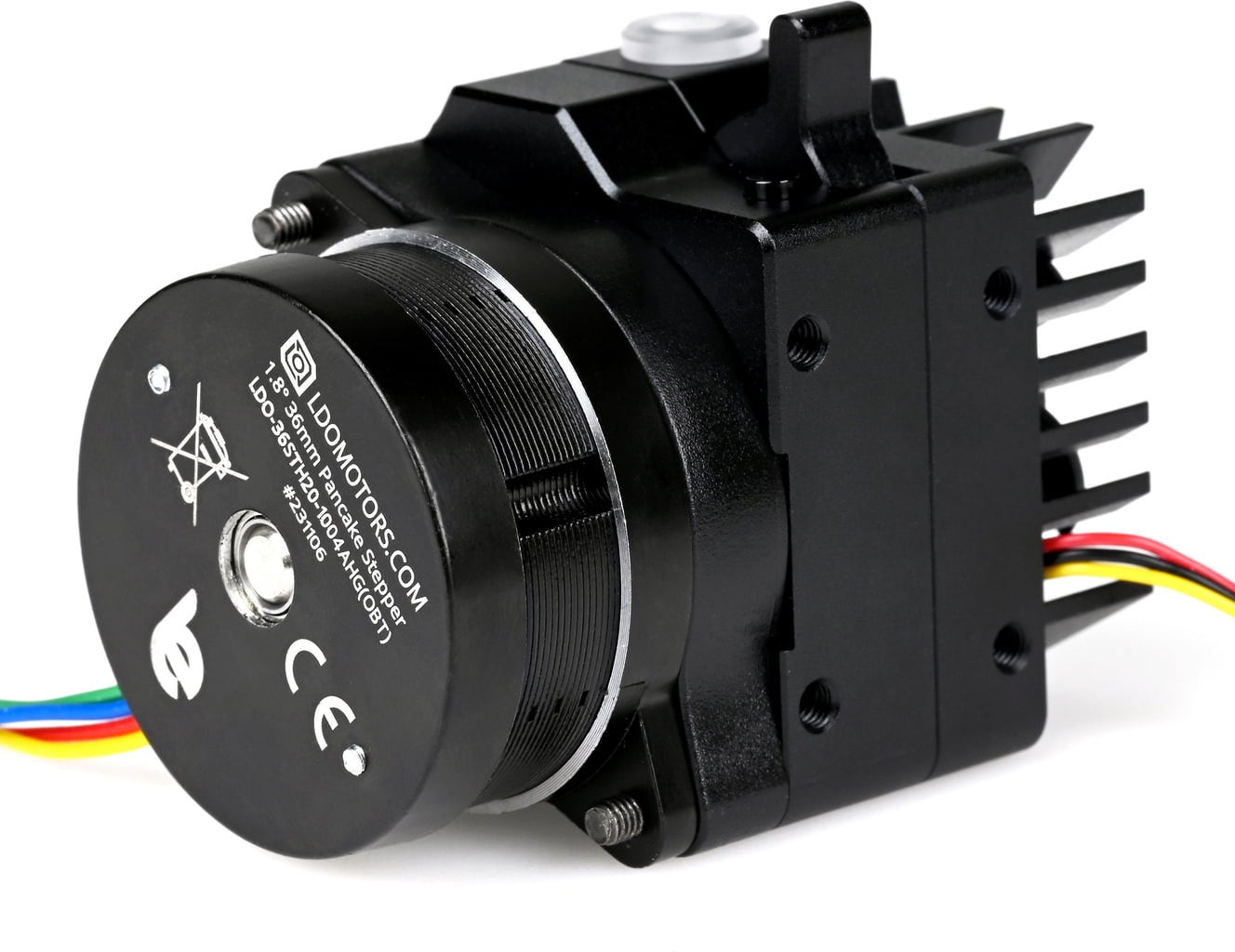

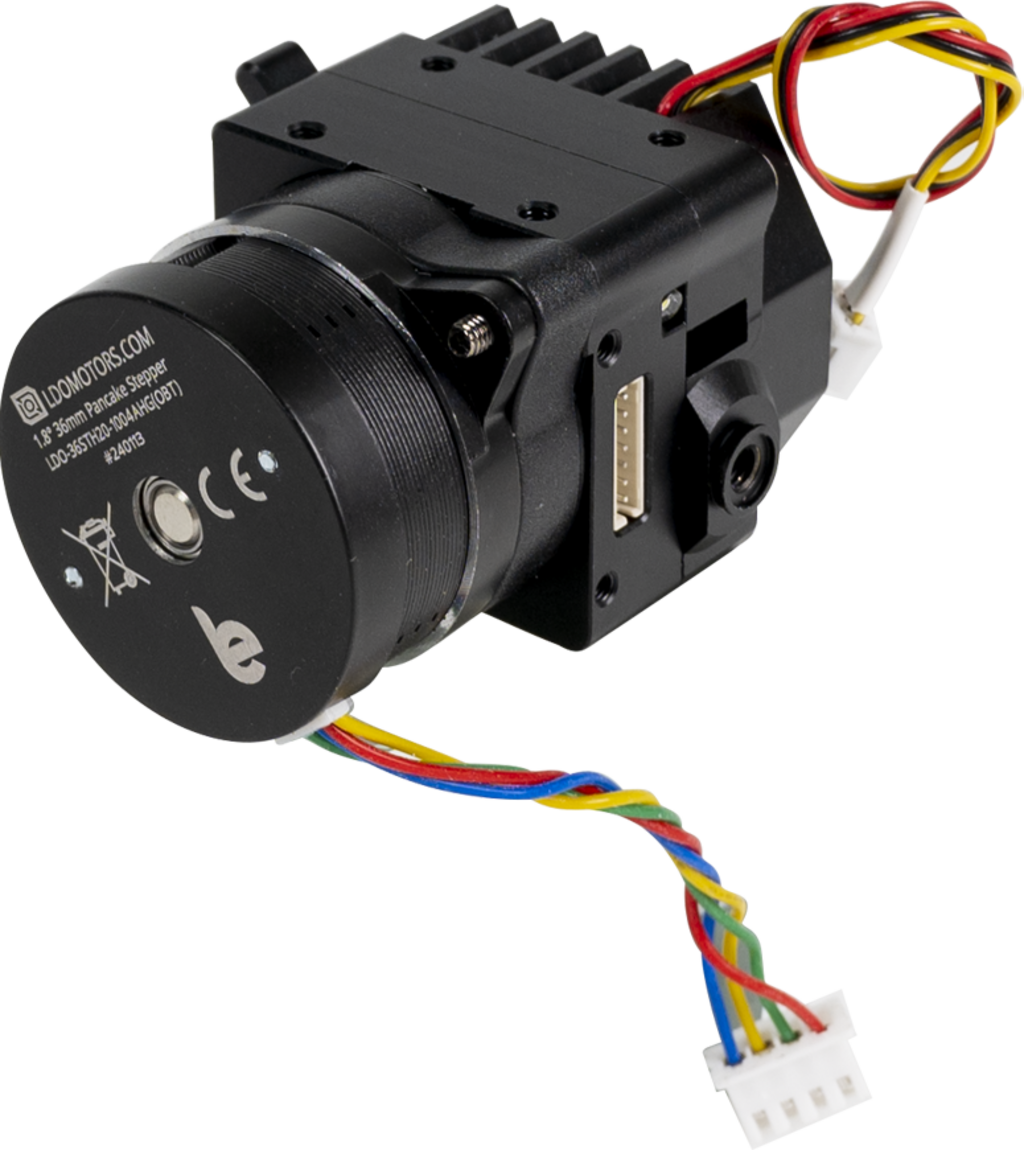

LDO Motors Smart Orbiter Extruder V3 Revo

The Orbiter Extruder V3 Revo is a lightweight and compact direct drive extruder for 1.75 mm filaments. The Revo extruder is made of quality components such as a high-temperature resistant injection moulded housing (GPA12) up to 200 °C and hardened gears from Bondtech, which give it more mechanical power and a higher success rate.

The Orbiter V2.0 Revo features hardened Bondtech quality dual drive gears, shortened to 11mm, that grip the filament from both sides. The gears have been flipped, which means the filament path is now closer to the extrusion centre. Changes to the motor design allow the Orbiter V2.0 Revo to have higher extrusion force and better acceleration performance.

The extruder is extremely wear-resistant and therefore suitable for applications with abrasive materials.

Additional features compared to the previous version:

► Lightweight,

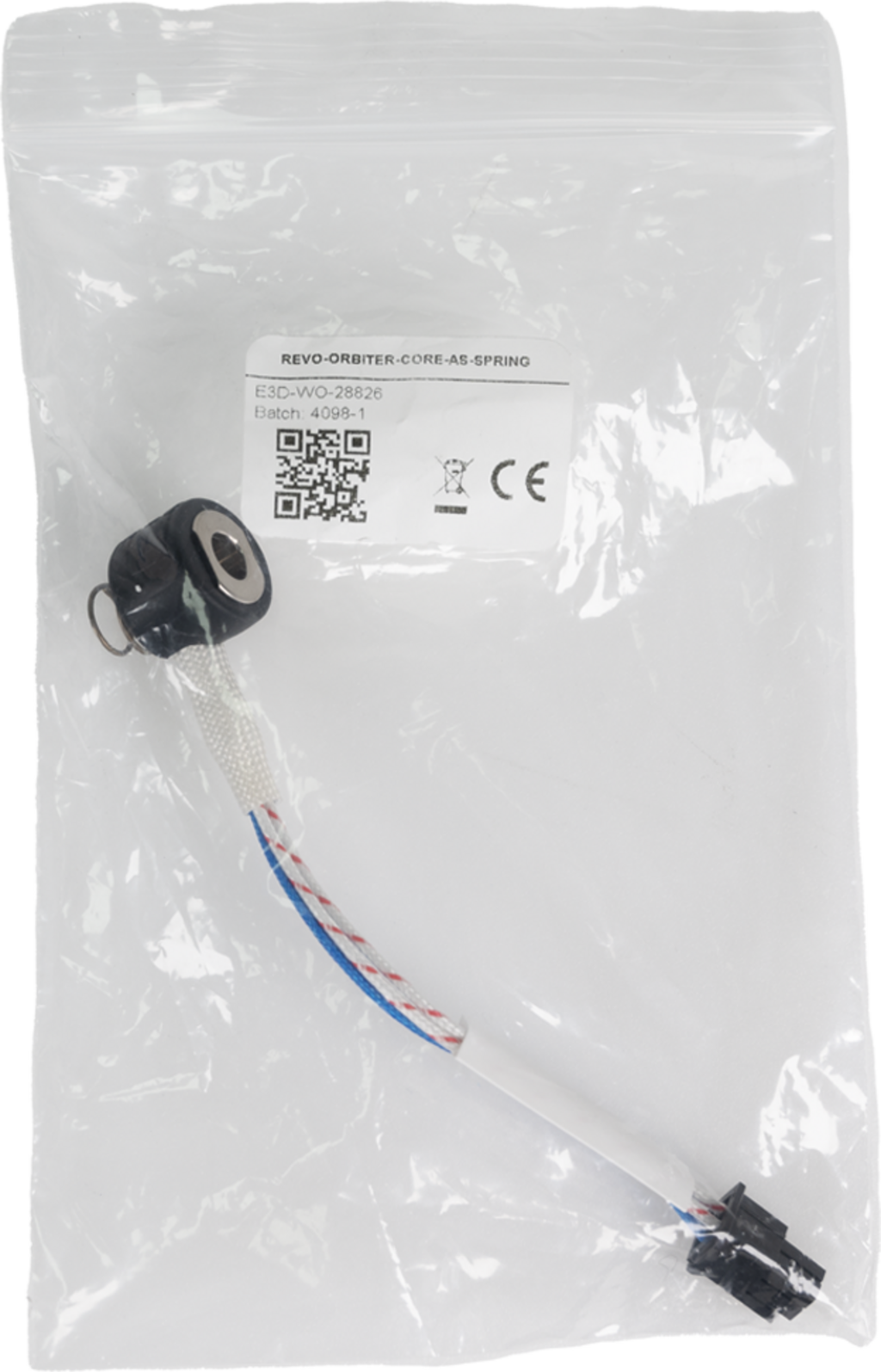

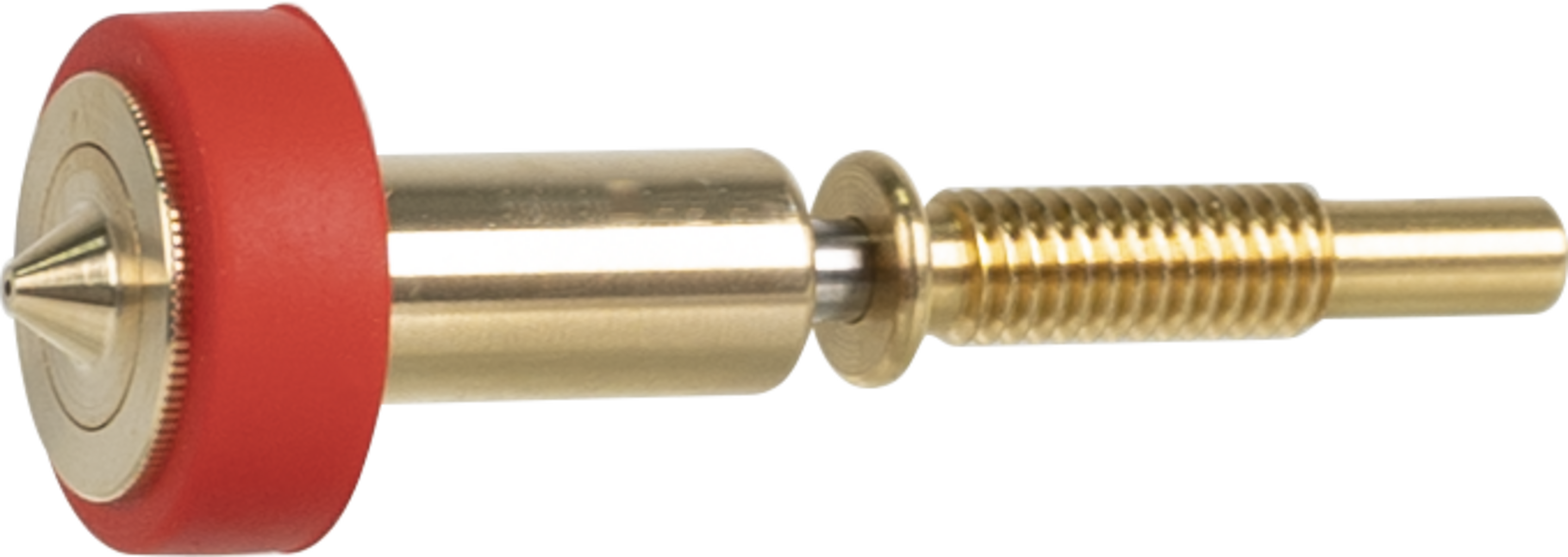

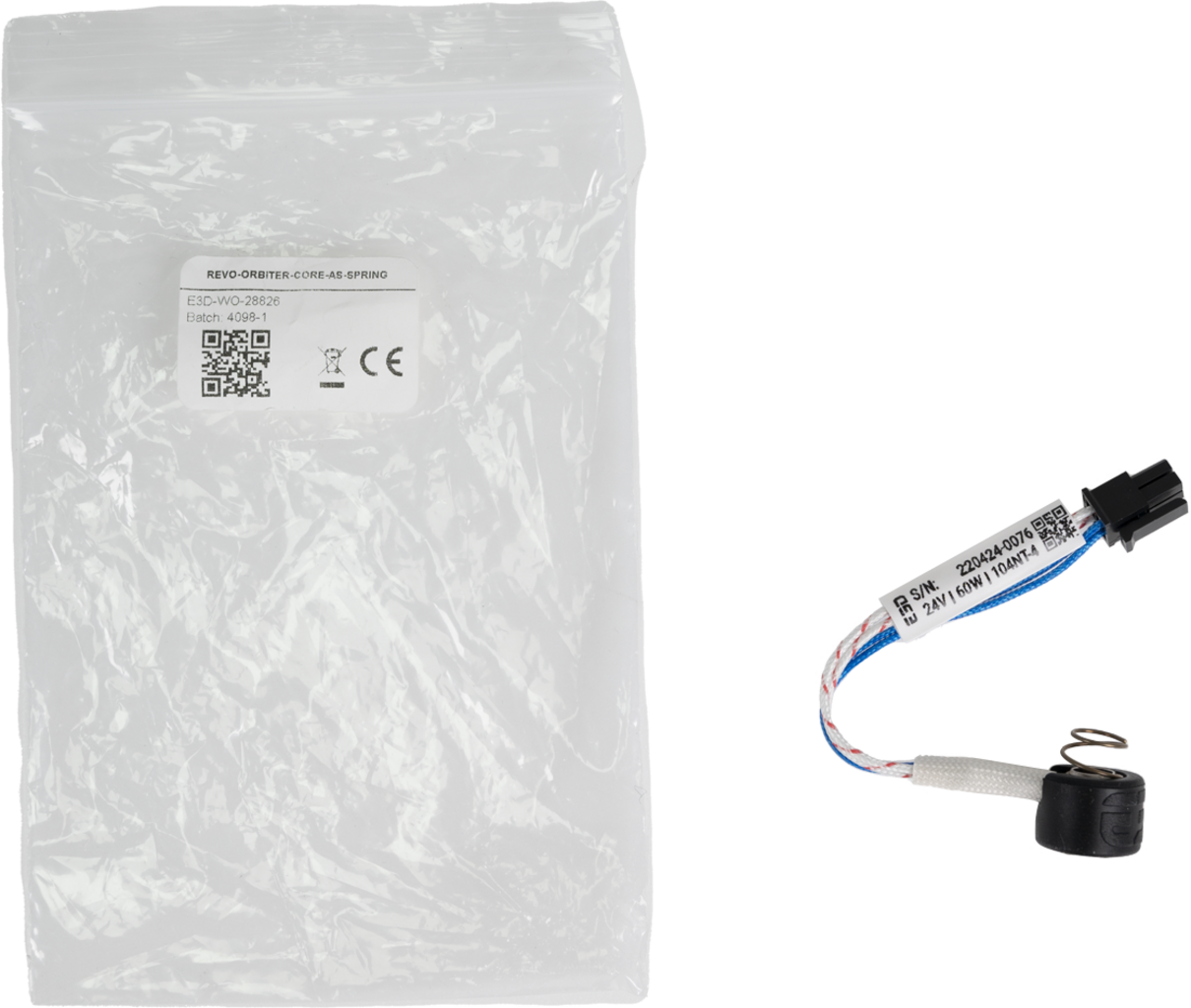

► E3D Revo nozzle and 60 Watt HeaterCore,

► The powerful LDO stepper motor ensures excellent performance with a retraction speed of 120 mm/s and an acceleration of up to 8000 mm/s²,

► The Dupont Delrin planetary gear is low-noise and low-friction,

► The PEEK gear sleeve is made of a hard and mechanically more resistant material,

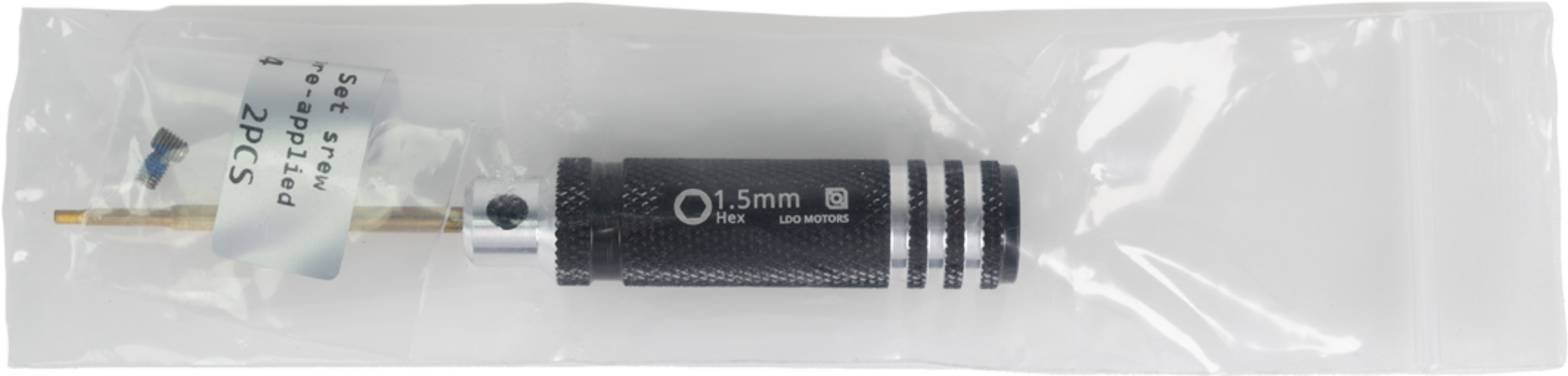

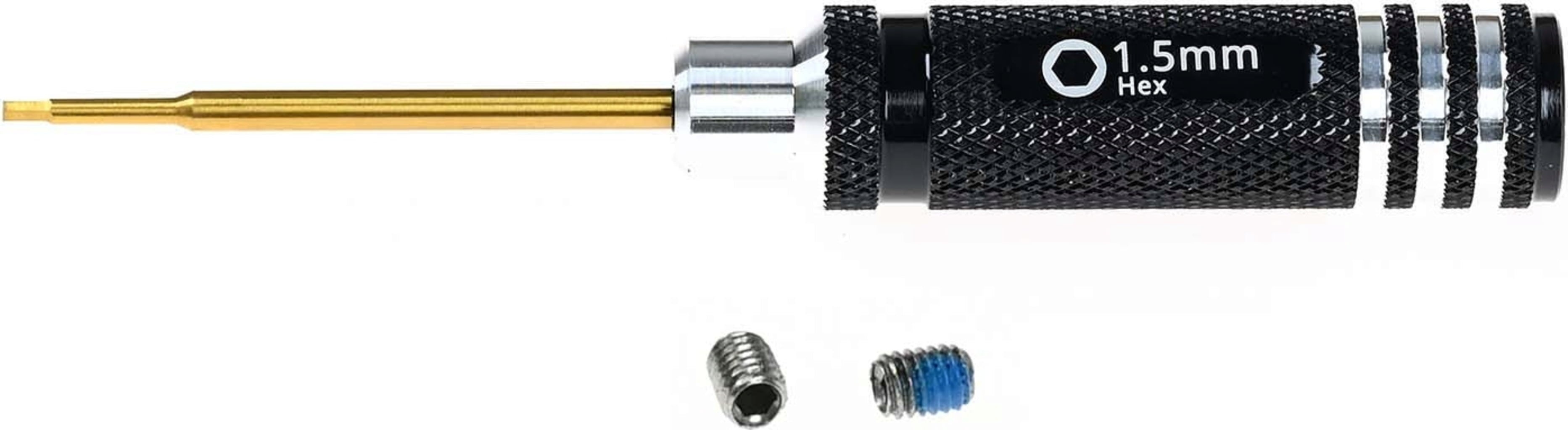

► For a better grip, a clamping mechanism with a clamping screw (Captive Grab Screw) was added,

► The perfectly aligned filament path results in a higher extrusion force,

► Mounting screws are in line with the thread exit path, which increases the rigidity of the housing and facilitates assembly,

► The gap between the stainless steel filament output guide and the filament feed mechanisms is approx. 0.2-0.3 mm and ensures the best TPU printing experience,

► The design of the PTFE inlet coupling has been improved and reduced in size,

► The position of the motor has been rotated by 10 degrees to facilitate its maintenance and assembly,

► An additional filament sensor has been equipped with an automatic loading and unloading button.

Here you can find the firmware configurations as well as other useful links and information.
