BIGTREETECH Smart Filament Sensor V2.0
Intelligent filament sensor to minimise material waste
€ 15,71 € 18,49 -15%
(Price shown includes 23% VAT. - Excludes delivery costs)
Features & Advantages
- Photoelectric sensor
- Outputs error messages
- Interrupts printing
- Prevents filament waste
- With print status display
Item no.: BIQU-1060000630, Content: 1 pc, EAN: 1060000630
Product information & technical details
- Item no.: BIQU-1060000630
- Manufacturer No.: 1060000630
- Manufacturer: BIGTREETECH
- Content: 1 pc
- Product type: Other Spare Parts & Upgrades
Description

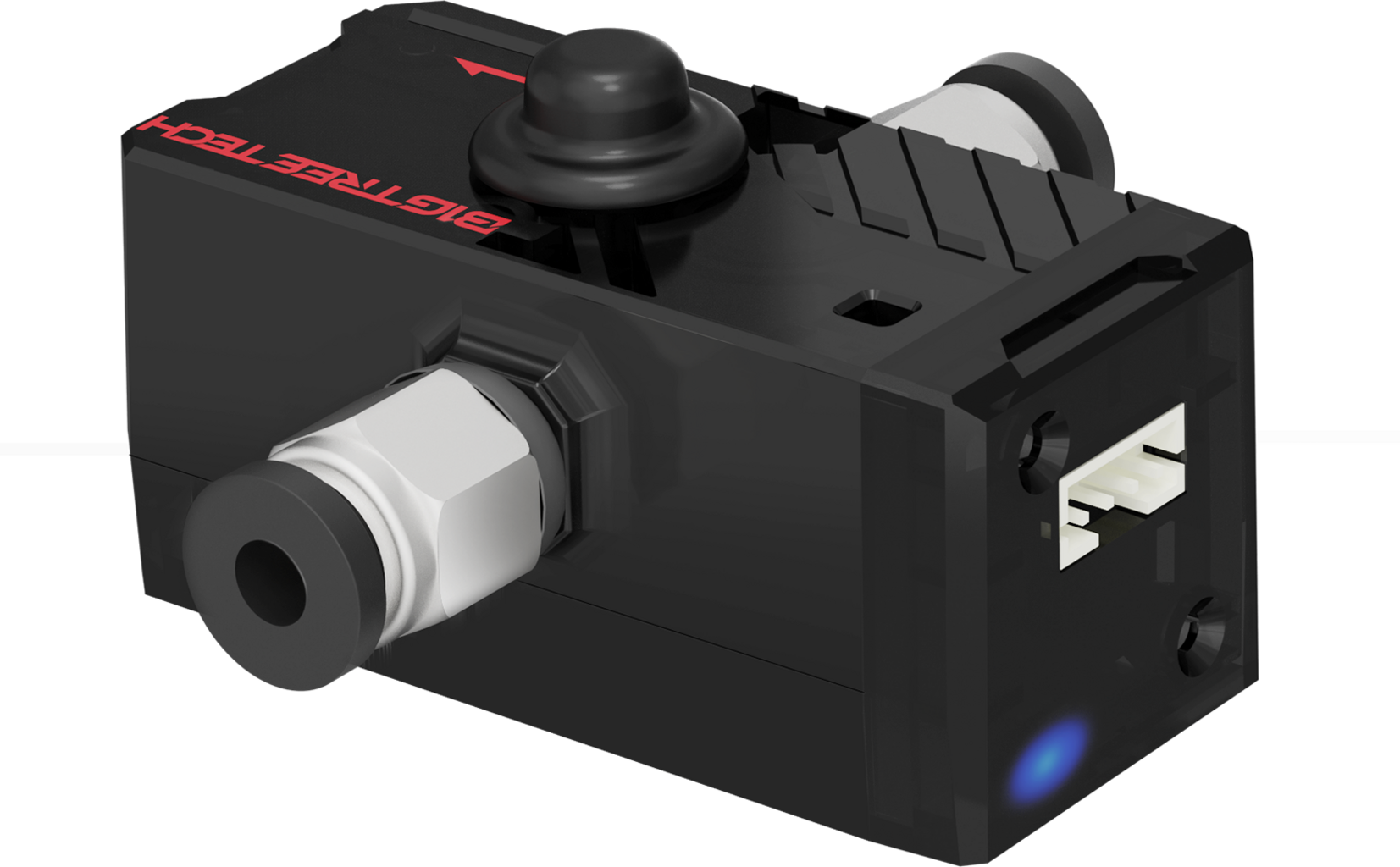

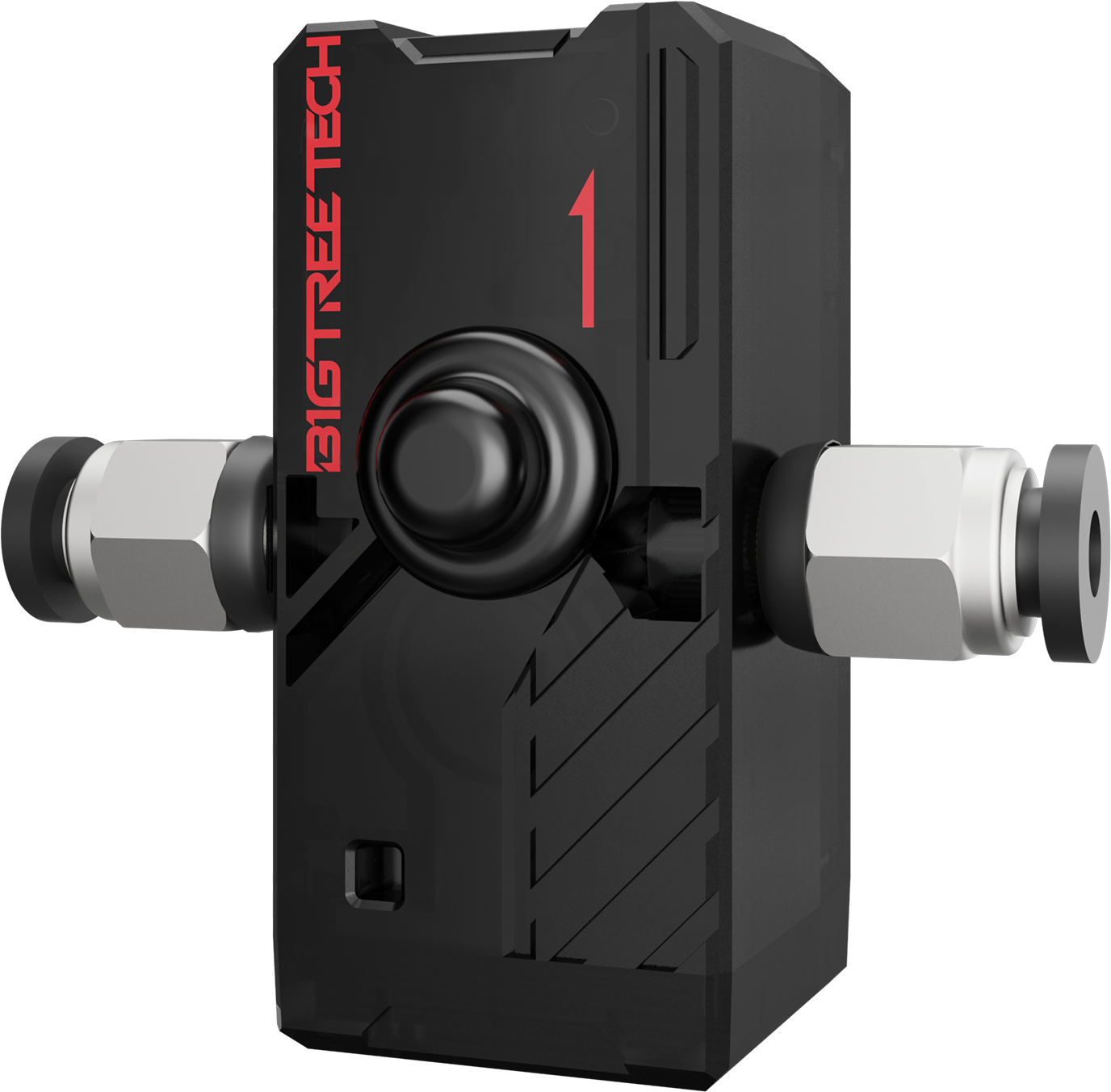

SFS V2.0 is a high-precision photoelectric filament sensor from Bigtreetech that provides error messages on the display when there are problems with the extruder, nozzle or filament and automatically pauses the printing process to avoid wasting filament. The sensor detects the following errors:
- Clogged nozzle,
- Running out of filament,
- “Knotted” filament,
- Faults or malfunctions on the extruder.
Real-time LED status display
SFS V2.0 is equipped with a coloured LED status display:
► Flashing blue light shows that printing is going smoothly.
► Constant red light shows that the filament is soon used up or broken - you are asked to react as quickly as possible.
► Constant blue light shows that the nozzle is either clogged, an error has occurred in the extruder, or the filament has become tangled - you are alerted to react as quickly as possible.
Bi-directional feeding
With Bi-Directional Feeding, you don't have to worry about the orientation of the sensor as it detects both filament directions. This means you can quickly install the sensor and position it flexibly and in a space-saving manner.
Mounting holes for easy installation

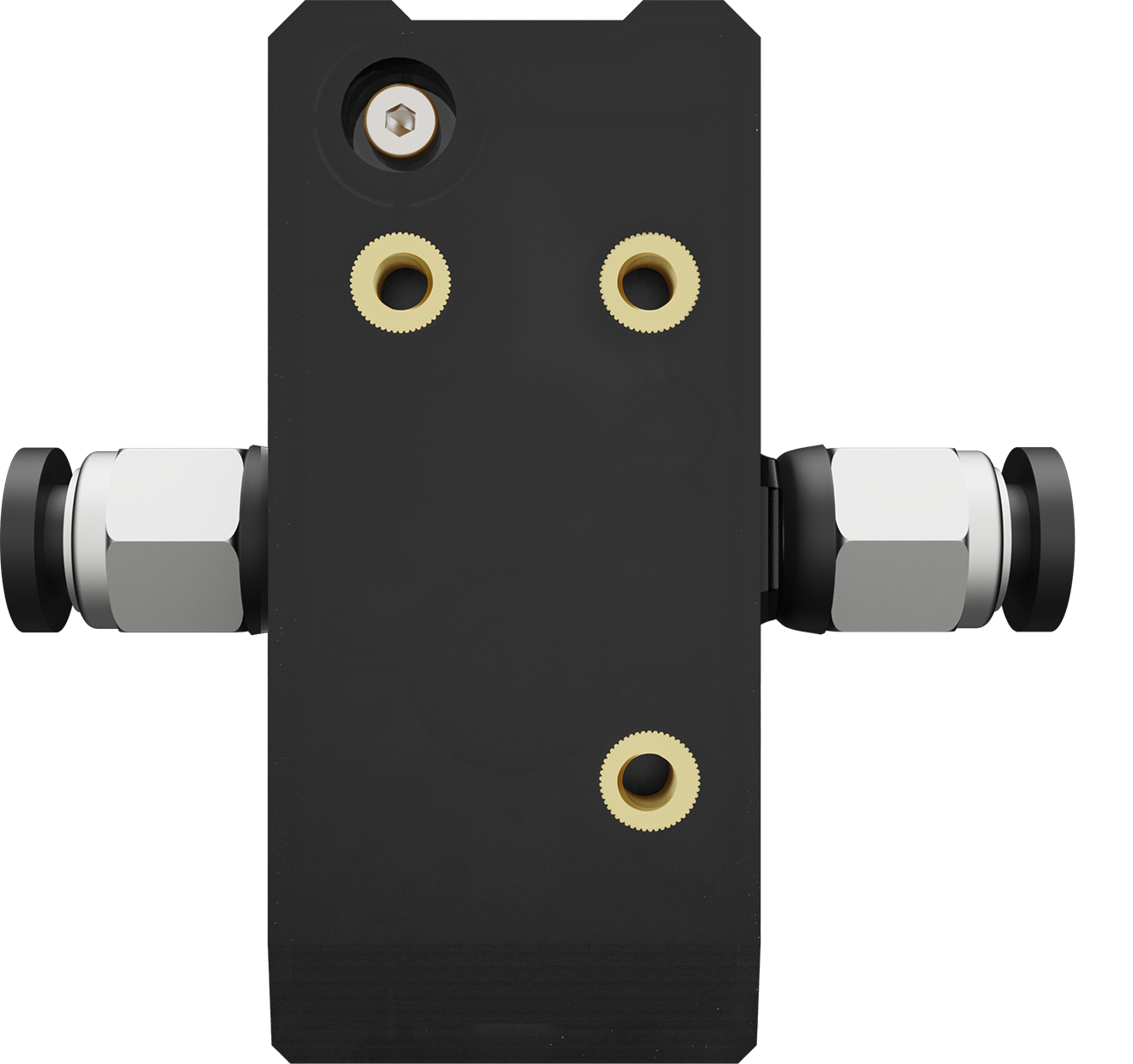

The SFS V2.0 has three mounting holes on the back. With a bracket, the sensor can be easily installed on a printer. Suitable for both Direct Drive and Bowden extruders.
Wide compatibility
The filament sensor supports all motherboards with I/O ports (Endstop, Filament Detection, BLTouch, Induction Sensor, etc.).
Included:
- 1x SFS V2.0
- 1 x Packaging Box
- 1 x User manual
- 2 x ID2xO.D.4x30 mm PTFE tube
- 1 x 100cm Cable
- 2 x PC4-M6 Bowden Tube Connector
- 2 x Collet and clamp set
- 3 x M3x6 socket head screws
Technical specifications:

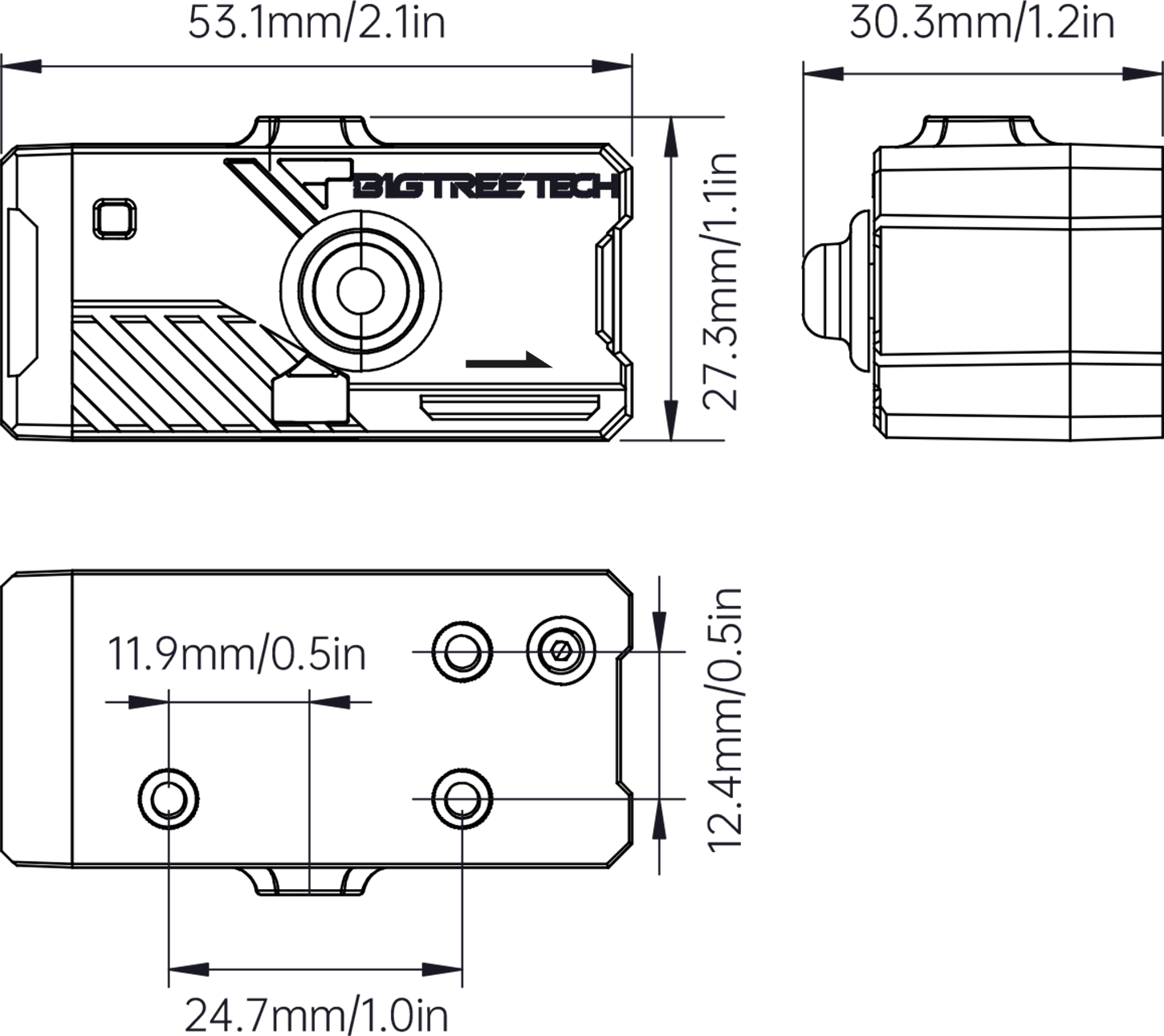

| Product dimensions | 53.1 x 30.3 x 27.3mm |
| Weight | 36g |
| Operating principle | Encoder + Pulley Set + Micro Switch |
| Theoretical detection length | 2.88mm |
| Filament diameter | 1.75mm |
| Nominal voltage | 3.3-5V |
| Working temperature | -10 to +50 °C |
| Working humidity | 10% to 90% |
| Features | Bi-directional feeding Filament feeding lever Status display |
| Firmware support | Klipper, Marlin, RRP |
Downloads
Product videos:
Questions & Answers about BIGTREETECH Smart Filament Sensor V2.0
-
Can this be used with a flying bear ghost 5 3d printer please?
Customer Reviews
2 English reviews written for BIGTREETECH Smart Filament Sensor V2.0
2 customer reviews in all languages
| 5 stars | | 2 | (40%) |
|---|---|---|---|
| 4 stars | | 2 | (40%) |
| 3 stars | | 0 | (0%) |
| 2 stars | | 0 | (0%) |
| 1 Stars | | 1 | (20%) |
5 reviews
2 customer reviews in English
2 customer reviews in all languages
-
Peter Harris
07 November 2023
"Verified Purchase" indicates that the rating was given by customers who actually bought this product from us. However, anyone who has a customer account with us can give a rating. Very good but cable too short
Rated with 4 out of 5 stars.
I installed my BTT SFS 2 just above the spool holder on the top left corner. I had to design and print a new bracket but it works well.
My only complaint is that the cable is about 20cm too short. It would have been so easy to provide a cable of sufficient length but this minor problem spoiled it for meWas this rating helpful? (0) (1)
-
Tiago
09 February 2024
"Verified Purchase" indicates that the rating was given by customers who actually bought this product from us. However, anyone who has a customer account with us can give a rating. Works Great with klipper
Rated with 5 out of 5 stars.
When calibrated properly, it does its job well, already saved me from a couple of jams, and should pay itself in a couple of months :)
It also has smooth gears that don't add much drag to the filament.Was this rating helpful? (0) (0)
