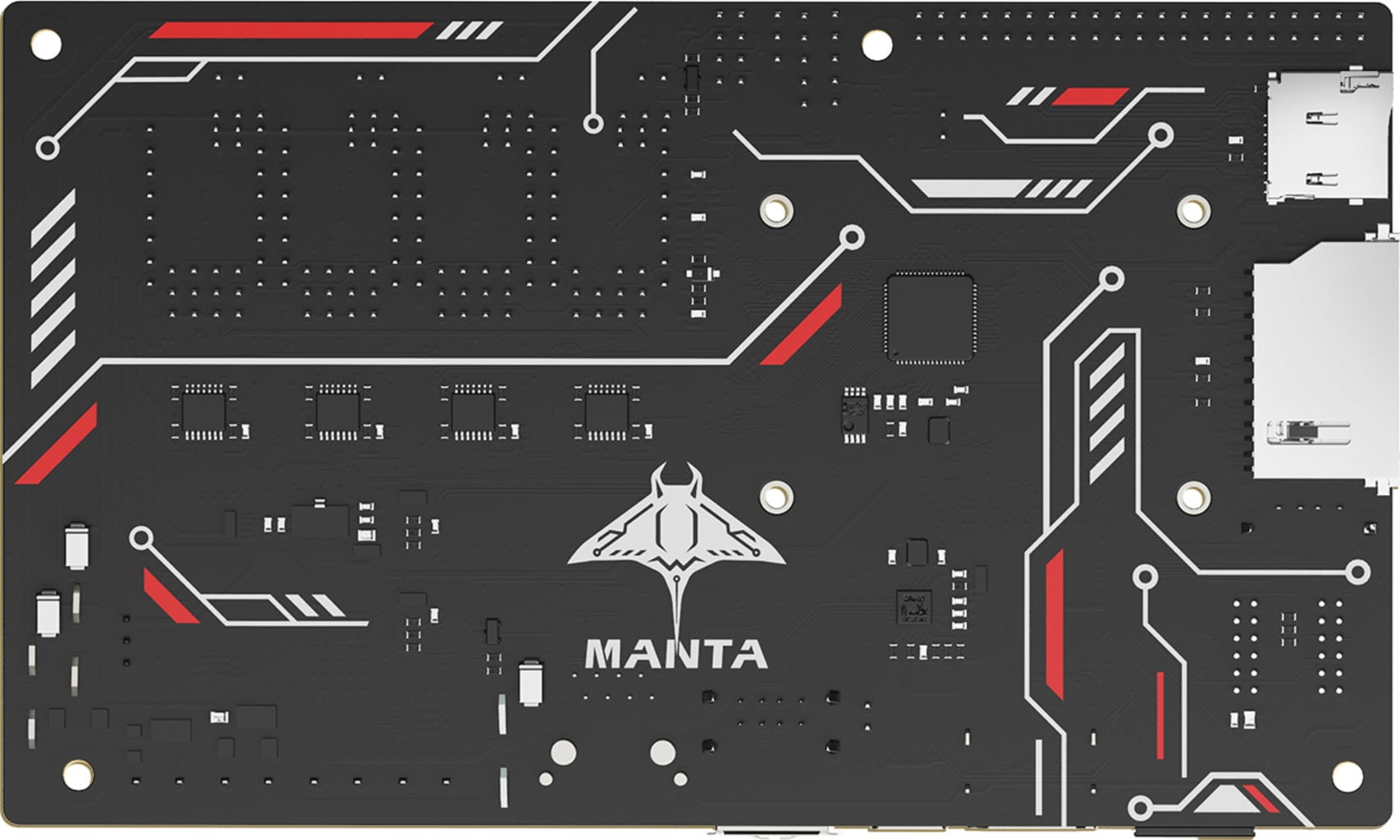

BIGTREETECH Manta M4P Mainboard
Powerful and versatile 32-bit mainboard
€ 71,99
(Price shown includes 23% VAT. - Excludes delivery costs)
Features & Advantages
- With many interface options
- Offers upgrade opportunities
- Compatible with Klipper & Marlin
Item no.: BIQU-1020000387, Content: 1 pc, EAN: 1020000387
Product information & technical details
- Item no.: BIQU-1020000387
- Manufacturer No.: 1020000387
- Manufacturer: BIGTREETECH
- Content: 1 pc
- Product type: Mainboards
Description
Manta M4P by BIGTREETECH is a versatile 32-bit mainboard that has many features and offers a variety of upgrade options thanks to many interface options. The mainboard is compatible with Marlin open-source software and with Klipper firmware when combined with the CB1. Manta M4P is most suitable for the Voron V0 and Ender 3.
Main Features:
- 32-bit ARM® Cortex-M0+ STM32G0B0RE, 64MHz - faster and more stable
- BTB connection for all CM4 versions
- 5A for Raspberry Pi - TPS5450-5A power supply chip
- 3 different voltages for fan connectors (5V, 12V and 24V)
Board to Board Connectors
The Manta M4P is equipped with the same connector as Raspberry Pi. Therefore the mainboard can be connected to all versions of the Raspberry Pi CM4 and CB1. The mounting of the CB1 or CM4 plate can be additionally reinforced using screws. The screws required for this are not included in the contents of the delivery of the mainboard.
Integrated HDMI connection
An HDMI connection allows the transmission of audio and video directly to an HDMI display!
Mechanical Runout Detection Sensor port
The mainboard is equipped with a connector for filament runout detection. When the filament is used up, the mechanical sensor informs the mainboard and the print is automatically stopped. After the filament is replaced, printing can continue.
BLTouch automatic levelling sensor port
Automatic bed levelling is guaranteed with the BLTouch!
Auto power off mode
Powerful and energy-saving! After printing is complete, the printer will turn itself off.
Connect to an RGB light bar
The motherboard allows you to connect an RGB light bar. This allows you to admire your printing processes in coloured lights!
SPI touch screen
The BIGTREETECH SPI touchscreen can be connected to the mainboard!
DSI display port
With a CSI camera you can capture your 3D prints on video!
Compatible Stepper Driver Interfaces: SPI, UART, STEP/DIR
More information, instructions and firmware files can be found here!
More information
Product Specifications:
Product size | 160x95mm |
Installation size | 146 x 84.2mm |
Processor | ARM Cortex-M0+ STM32G0B0RE |
Input voltage | DC12V or DC24V |
Logic voltage | DC3.3V |
Firmware | Klipper |
Fan ports | 3 CNC fans (optional voltage 24/5V), 1 SoC fan |
Extension interfaces | Servos, Probe, Fil-DET, 2 x RGB |
Stepper motor drivers | TMC5160, TMC2209, TMC2225, TMC2226, TMC2208, TMC2130, ST820, LV8729, DRV8825, A4988, etc. |
Driver working modes | SPI, UART, STEP/DIR |
Motor driver interfaces | X, Y, Z (Dual Z axis), E0 |
3D printer setup | Cartesian, Delta, Kossel, Ultimaker, CoreXY |
Recommended software | Cura, Simplity3D, Pronterface, Repetier-host, Makerware |
Downloads
Questions & Answers about BIGTREETECH Manta M4P Mainboard
-
If you have flashed klipper ,can you load your 3d models onto an SD card and use that to get the models on the printer or do you have to use the wifi????
