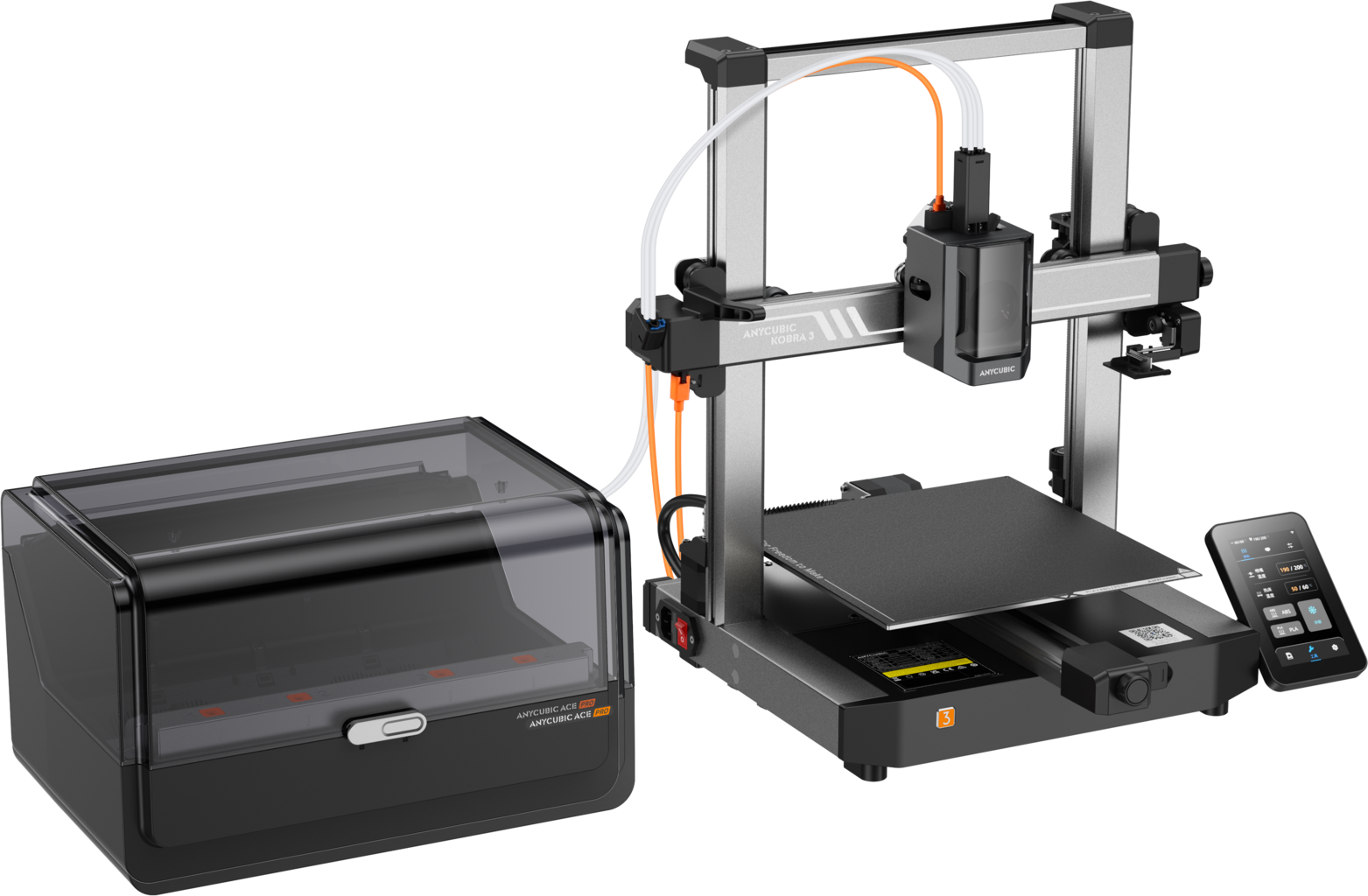

Anycubic Kobra 3 Combo

No more slow, monotonous and boring 3D printing! With the Kobra 3 Combo from Anycubic you get a fascinating, perfectly coordinated 3D printing duo that supports you in all your creative projects in the best possible way.

The combo combines two components that take your 3D printing to a whole new level:

The Kobra 3 FDM 3D printer brings your ideas to life with an outstanding printing speed of up to 600 mm/s and a maximum acceleration of 20,000 mm/s². The printer from the popular Kobra series is supported by Anycubic Colour Engine Pro, the so-called ACE Pro, an automatic material system with drying function for all those who want to experiment with multi-colour printing. Exclusive filaments developed in collaboration with PANTONE Color Institute (not included) finally get the best out of the combo!

This is how colorful splendor meets record speed!

Anycubic Kobra 3

With its impressive build volume of 250 x 250 x 260 mm, the Kobra 3 offers enough space for all your ambitious projects, while the print speed of up to 600 mm/s and an acceleration of 20,000 mm/s² enable breathtaking print times.

Robust design with integrated core modules

The printer impresses with its elegant design and at the same time with its robust construction. The integrated, easy-to-install core modules have a sealed design that effectively protects the important components from dust and other influences.

Precisely manufactured XY axis

The printer's precision-engineered XY axis features a double metal core and SG15 bearings to ensure smooth and stable operation. The entire motion mechanism is incredibly wear-resistant, ensuring a long service life.

Stable Z-axis with dual leadscrews

The Z-axis of the Kobra 3 has a dual leadscrew, which ensures that the stroke resistance is reduced during printing.

Improved cooling system

The design of the extruder fan has been optimized to easily achieve a higher operating speed of 7000 rpm. This allows heat to be dissipated better and the printed models to be cooled down faster.

Newly developed LeviQ 3.0 with an even more intelligent Z-offset

With LeviQ 3.0, automatic levelling becomes child's play. A specially developed module ensures intelligent compensation of the Z offset after automatic levelling, with the calculation and adjustment taking place fully automatically at the push of a button.

Smart functions for conducting self-tests

► Monitoring the belt tension: The resonance detection function allows the belt tension to be identified with a click and forwarded to a smart AI detection system. Attention! A camera must be used to use the AI function.

► Resume Printing function for automatic resumption of printing in the event of an unexpected power failure.

► Filament run-out sensor for automatic detection of running out filament.

Vibration compensation

An accelerometer sensor (G-sensor) for vibration compensation can be used to detect the resonance frequencies of the X and Y axes and to make adjustments to the motion control. Offset printed lines are a thing of the past, and the precision and stability of your 3D printed models are immediately noticeable.

Temperatures up to 300 °C

The Kobra 3 is designed for printing temperatures of up to 300 °C. The quick-release design allows the nozzles to be changed without tools.

Additional features:

• 32-bit motherboard with silent drivers for a quiet printing experience,
• 4.3 inch touchscreen with adjustable rotation angle (30°-60°),
• Quick adjustment of the XY belt tensioner via button.

Anycubic Colour Engine Pro – ACE Pro

With Anycubic's Colour Engine Pro, you can print multiple materials simultaneously, create complex objects in colourful combinations, and save time and resources.

With 4 available spool slots, the automatic multicolour material system can accommodate up to 4 different colours at the same time to optimally support your multicolour printing. If the device is combined with another ACE system, even 8-colour printing with a wide range of colour combinations is possible.

How does multi-colour printing work with Colour Engine Pro ?

The desired colours are automatically switched during the printing process according to your slicer settings and the corresponding consumables are delivered to the printer. It's that easy!

Active drying function for more printing success

ACE Pro uses a dual 200 watt PTC heating element for active and even drying of your filaments during the printing process. The heating module is supported by two powerful fans that ensure hot air circulation. Tip: The interior temperature can be set up to 55 °C with optimal humidity.

Drying during printing or filament storage

The drying function can of course be used throughout the entire printing process to ensure that moisture-free filaments are always available. However, thanks to the Sealed Space Design, the Colour Engine Pro can also be used for the safe and careful storage of filaments.

Anti-tangle design

The Anycubic Colour Engine Pr o is connected to the extruder in parallel through four output lines. Since each of the filament slots has its own output line, when changing colours, not all of the filament in the output line needs to be wound back to the spool, but only the part that is fed back into the inner chamber of the extruder. This reduces the possibility of spool entanglement on the one hand and prevents the material from running out in a moment on the other.

An active rewind function allows the device to actively rewind the filament during a colour change. The combination of a parallel connection and active winding benefits the anti-tangling function.

Smart features:

► Clogging detection: A smart mechanical buffer structure detects blockages in good time and consequently interrupts the print.

► Automatic refilling of two consecutive colour filament spools: After the first spool has been used up, printing of the second spool with the same colour filament will automatically begin.

► Intelligent colour change: A special algorithm calculates the colour category of the printed model layer by layer. Adjacent layers are continuously printed with the same colour, reducing material changes and filament waste. This also noticeably reduces the overall printing time of a model.

► RFID Sync: In-house filament spools equipped with an RFID chip are automatically recognised by the ACE regarding their colour and material type.

Optional: PANTONE filaments

In an exclusive collaboration between Anycubic and PANTONE, the first certified consumables for 3D printing were developed.

The filaments are a real eye-catcher and come in four stunning colours:

• Peach Fuzz
• Interstellar Violet
• Tropical Turquoise
• SpringLeaf

Attention! The PANTONE filaments are NOT included in the delivery of the Kobra 3 Combo!

Anycubic Slicer & App:

• Provide perfect support for multi-colour printing through colouring of multi-colour models, colour changing, slicing, etc.;
• Support remote control via computer and mobile phone – anytime and anywhere;
• Support real-time monitoring of printing status via camera (optional);
• Support the control of the 3D printer via the slicing software in your own local network, without network delays.

Makeronline Community

Explore the imagination of other 3D printing enthusiasts, share your creations with the community and take part in exciting competitions or prize draws.

Included in delivery:

• 1 x Kobra 3
• 1 x Anycubic Colour Engine Pro (ACE Pro)
• 1 x print head
• 1 x touchscreen
• 1 x spool holder
• 1 x cable holder
• 1 x Cleaning Brush
• 2 x M2x14 screws
• 4 x M3x6 screws
• 2 x M4x16 screws
• 1 x M3x10 screw
• 1 x M3x8 screws
• 1 x U disk
• 2 x power supply
• 1 x signal cable
• 4 x cable collectors
• 5 x filament tubes
• 1 x wrench set
• 1 x Allen key set (4.0, 3.0, 2.5, 2.0, 1.5)
• 1 x Filament
• 1 x Grease
• 1 x nozzle cleaner

Technical specifications:
