3DJAKE Threaded Inserts (50-piece set), M8 x 12.7 mm (50 pcs)

Special threaded inserts for 3D printing components in a set of 50

222 Customer Ratings

€ 17,56 € 18,49 -5%

(€ 0,35 / pc, Price shown includes 23% VAT. - Excludes delivery costs)

Model type : M8 x 12.7 mm

In stock

Delivery by Friday, 03 January if you order by Thursday at 00:00.

Quantity discount available!

  • from 2 only € 16,64 / set -10%

Ireland: Free standard delivery from € 87,90
More information regarding shipping & delivery

Features & Advantages

  • Special shape for a perfect hold
  • Easy installation
  • Insert for various plastic parts
  • High-quality brass

Item no.: ISP-GWEM8, Content: 50 pcs, EAN: 9120099284721

Frequently bought together with ruthex Soldering Tips / Melting Aid Set

3DJAKE Threaded Inserts (50-piece set) ruthex Soldering Tips / Melting Aid Set - 1 set
Threaded Inserts (50-piece set) - M8 x 12.7 mm € 17,56 (€ 0,35 / pc)
ruthex Soldering Tips / Melting Aid Set € 17,49
Total price: € 35,05

Product information & technical details

  • Item no.: ISP-GWEM8
  • Manufacturer No.: GWEM8
  • Manufacturer: 3DJAKE
  • Content: 50 pcs
  • Product type: 3D Printer Accessories
Description

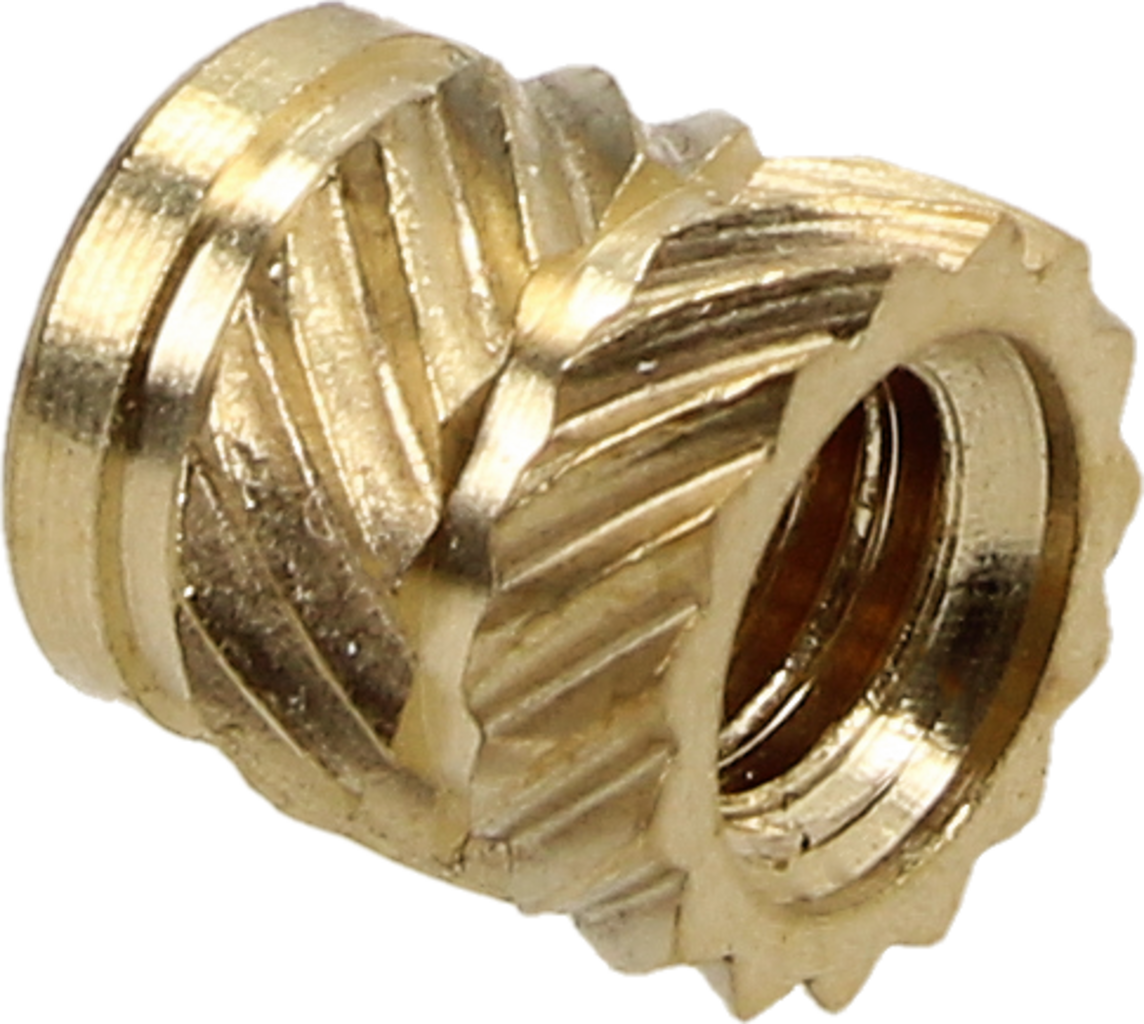

The threaded inserts from 3DJake have a special spiral contour to ensure the best possible hold. The inserts made of high-quality brass have excellent thermal conductivity and corrosion resistance.

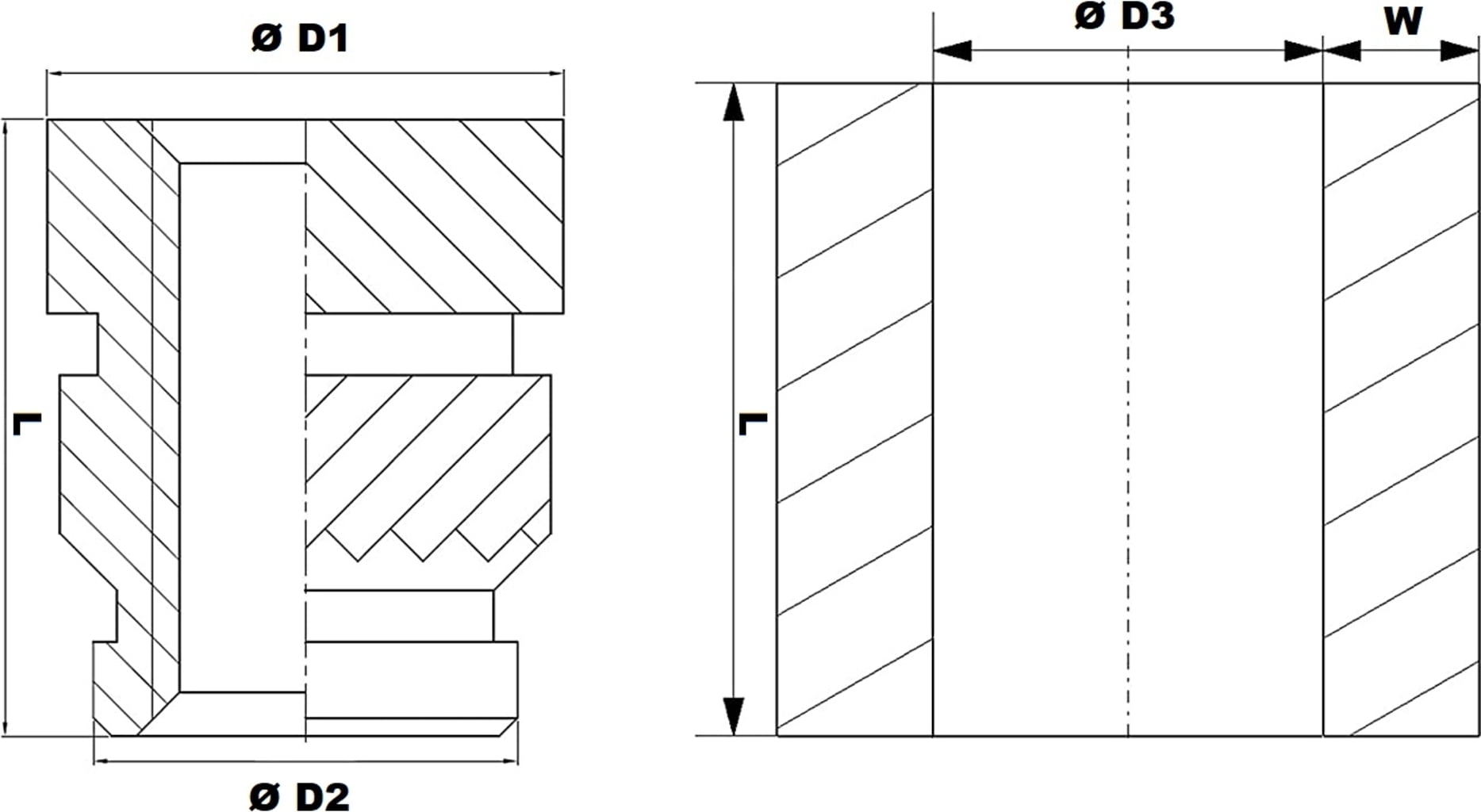

Thread size Ø D1 Ø D2 Ø D3 L (+1 mm) W (at least)
M3 4.6 mm 3.9 mm 4.0 mm 5.7 mm 1.6 mm
M4 6.3 mm 5.5 mm 5.6 mm 6.35 mm 2.1 mm
M5 7.1 mm 6.3 mm 6.4 mm 9.5 mm 2.6 mm
M6 8.7 mm 7.9 mm 8.0 mm 12.7 mm 3.3 mm
M8 10.24 mm 9.5 mm 9.6 mm 12.7 mm 4.5 mm

The dimensions D3, L and W refer to the model in which the thread inserts are inserted.

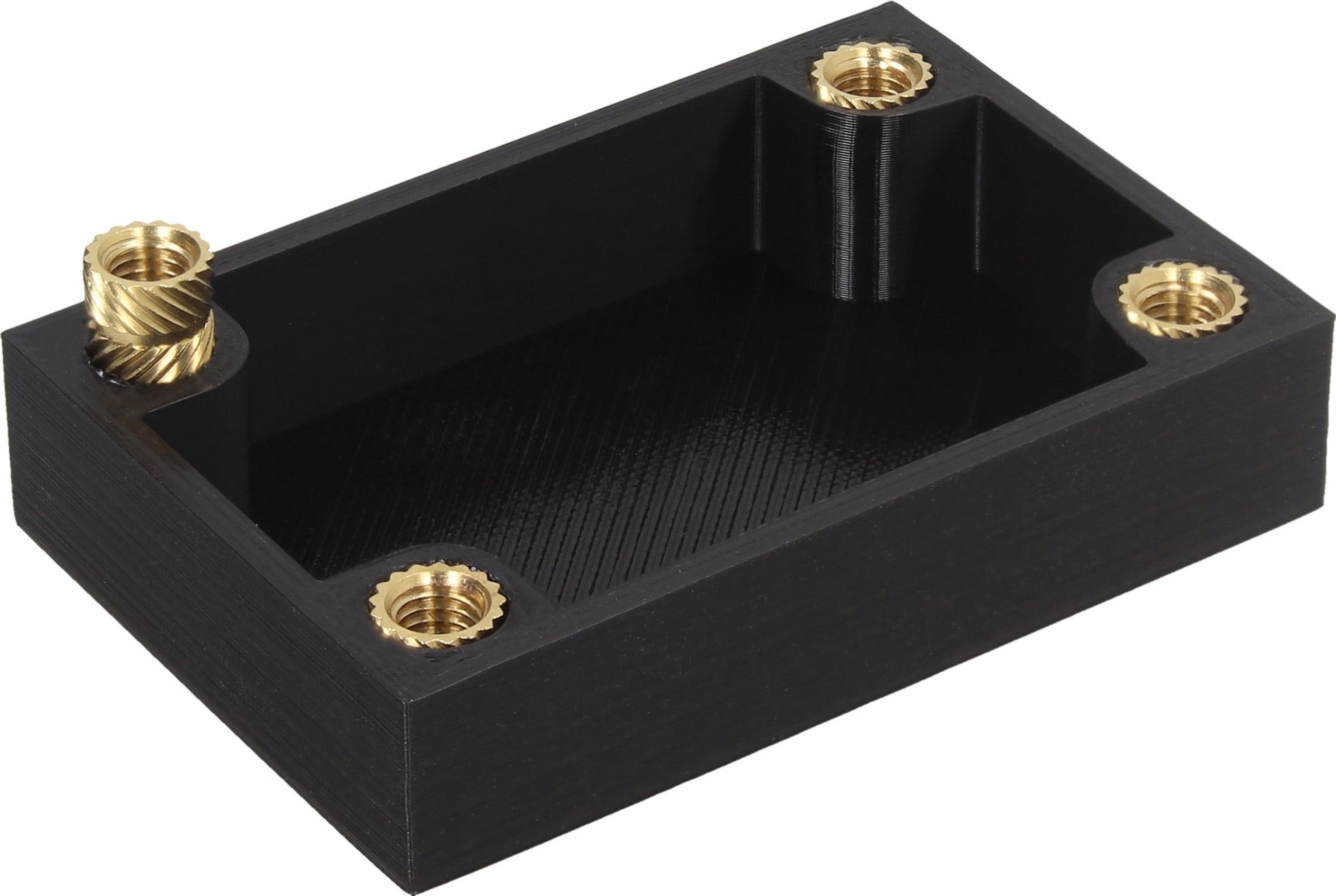

The assembly takes place in four simple steps:

  1. Position the threaded insert in the hole in the component
  2. Heat the thread insert (ideally to the hot-end temperature of the filament)
  3. Slide the threaded insert into the hole provided
  4. Let the component cool down to ensure its final strength

A soldering iron is required to assemble the threaded inserts.

Accessories

Questions & Answers about 3DJAKE Threaded Inserts (50-piece set)

Receive answers from other customers who purchased this product. Please forward any other order-related questions to our Customer Service Team.

  • so what are the cavity requirements for your m3 inserts? I found the technical drawing a little confusing

    This question has not been answered yet.

  • Where do I get 3D-CAD-data for all the insert from?

    1 Answer, last answered on 20 August 2021

  • Would these be usable with carbon fibre PLA?

    1 Answer, last answered on 15 June 2023

  • Are the M8 versions coarse or fine thread?

    This question has not been answered yet.

  • Do I need an M5 size threaded rod to fit the M5 size threaded insert?

    1 Answer, last answered on 25 June 2021

  • Can these be used in wood?

    1 Answer, last answered on 26 May 2021

  • Hi, will these be available with smaller threads at some point ? M2 or M2.5 for instance ?

    1 Answer, last answered on 04 July 2023

  • I want to use threaded inserts in acrylic. Do you know what the resistance (lb/kg) of these inserts to pulling out and is your BondTech version better in this respect?

    1 Answer, last answered on 11 February 2021

  • Is it absolutely cadmium and lead free? Thanks for reply

    This question has not been answered yet.
